Description

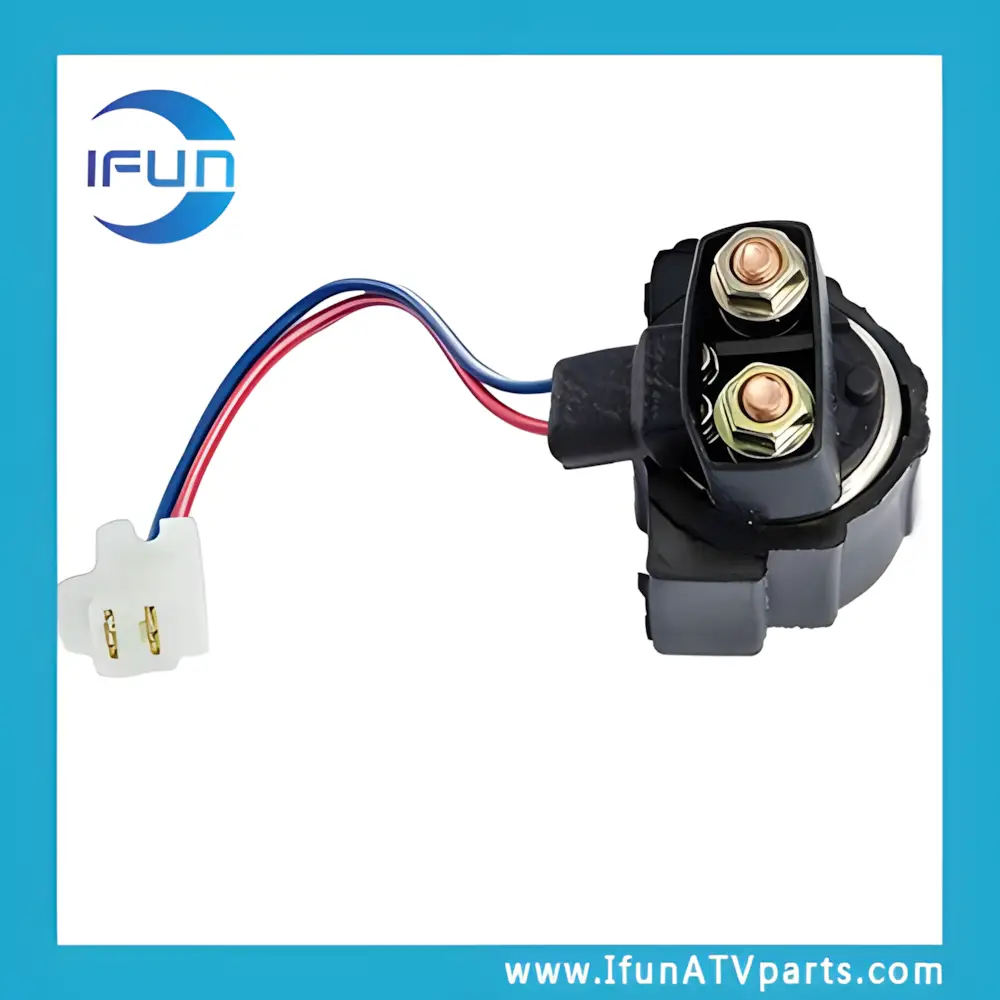

The Starter Relay Solenoid RL1373RE105AR is a high-quality aftermarket electrical component designed to provide reliable engine starting performance for ATV and UTV applications. This electromagnetic switch serves as the crucial link between your ignition system and starter motor, ensuring efficient power delivery when you need it most.

Key Features & Benefits

Superior Construction

• Material: Durable metal and plastic construction for maximum longevity

• Voltage: 12V DC operation, standard for most ATV/UTV applications

• Terminals: 6-terminal configuration with SPST normally open design

• Weight: Approximately 156g (5.5oz) – compact yet

• Color: Professional black finish

Advanced Functionality

Dual-Purpose Operation: This starter solenoid performs both electrical switching and mechanical engagement functions

• Electrical: Acts as a high-current relay, managing power flow from battery to starter motor

• Mechanical: Engages starter pinion gear with engine flywheel for cranking action

Performance Advantages

• High Current Handling: Designed to manage the substantial electrical load required by starter motors

• Electromagnetic Precision: Uses electromagnetic coil technology for reliable engagement

• Built-in Protection: Intermittent duty cycle prevents overheating during extended cranking

• Corrosion Resistance: Quality materials resist environmental degradation

OEM Compatibility & Cross-References

Primary OEM Numbers

• RL1373RE105AR (Main part number)

• RL1375RE105AR (Related Honda application)

Compatible Vehicle Applications

Honda Models:

• TRX300 FourTrax 300 2X4 (1988-2000)

• TRX300FW FourTrax 300 4X4 (1988-2000)

Yamaha Models:

• YFM600 Grizzly 600 (1998-2001)

• Various ATV models with compatible electrical specifications

Universal Applications:

• Most 12V ATV and UTV systems with matching terminal configuration

• Compatible with Arctic Cat, Honda, Kawasaki, and other powersports brands

Technical Specifications

Installation & Wiring Guide

Terminal Configuration

Large Terminals (High Current):

• Ignition switch signal input

• Ground connection

• Additional safety circuit connections

Safety Considerations

• Always disconnect battery before installation

• Ensure proper terminal identification to prevent reverse

• Use appropriate torque specifications for mounting

Troubleshooting & Diagnostics

Common Symptoms of Failure

• Single Click: Solenoid attempts to engage but fails to complete the circuit

• No Response: Complete electrical failure, no sound when ignition is activated

• Intermittent Operation: Inconsistent starting performance

• Continuous Cranking: Solenoid contacts weld closed

Quality Assurance & Warranty

Manufacturing Standards

• TS16949 Certified: Manufactured in facilities meeting automotive quality standards

• 100% Testing: Every unit is tested before shipment to ensure functionality

• Brand New Condition: All units are new, never rebuilt or refurbished

Professional Support

• 1 Year Warranty: Comprehensive coverage for manufacturing defects

• 24/7 Technical Support: Expert assistance available via multiple channels

• Fast Response: All inquiries answered within 24 hours
